In my experience, treating Packaging Quality Control as a quick visual check destroys margins. After investigating hundreds of transit failures and running factory-floor drop tests to ISTA performance standards, our team proved that random inspections cannot prevent crushed boxes.
I built this checklist directly from lab testing and supplier audits, not theory. The following steps detail material sampling, physical stress tests, compliance labeling, automation, and transit validation. A full methodology and no-conflict disclaimer appear below.
Table of Contents
The 7-Step Checklist of Packaging Quality Control

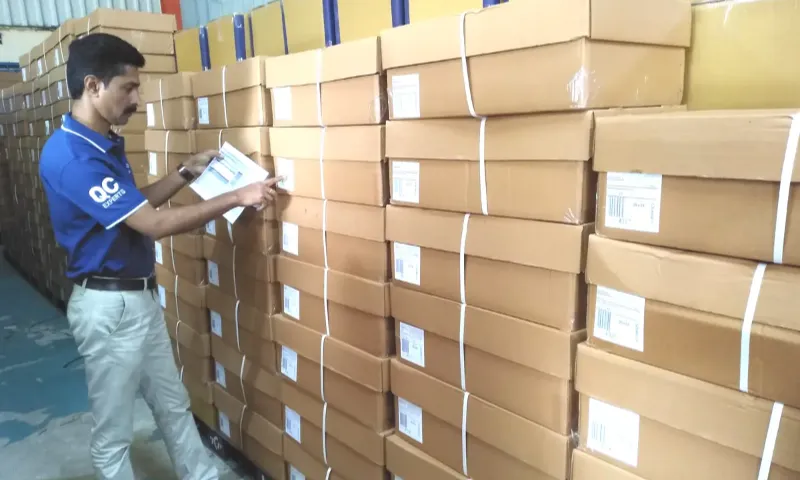

1. Set Acceptance Criteria With ISO 2859-1 Sampling Plans Before You Open a Carton
Procurement teams waste days arguing with suppliers about defects. This happens when they fail to set clear critical, major, and minor failure thresholds upfront.
Without a precise lot definition and an ISO 2859-1 sampling plan, packaging quality control becomes subjective. I always start new custom mailer runs on General Inspection Level II. We tighten this to Level III for luxury rigid boxes holding fragile items.
The execution process requires strict discipline. Assign your Acceptable Quality Limits (AQLs) and draw random samples to compare against Accept/Reject (Ac/Re) metrics. If a structural element fails, abandon sampling and demand 100% inspection. Finally, log these exact results into your supplier scorecard.
🛡️ Our Verdict: During a recent 50,000-unit carton run, a factory manager called a 3mm flute crush a “minor” visual flaw. Because our contract set structural integrity at a strict 1.0 AQL, we rejected the lot immediately.
⚡ Power Move: Never negotiate defect definitions on the factory floor. Lock your AQLs into the initial purchase order.
2. Qualify Raw Materials Early, Especially Sustainable Substrates
Brands love marketing sustainability. But in our testing lab, eco-friendly packaging materials present severe structural risks. Recycled substrates easily pass visual inspections. Yet, they routinely fail under heavy compression or high humidity due to microscopic fiber breakdown.
Never trust a supplier specification sheet. My team measures exact GSM, board thickness, and moisture levels directly on the loading dock using TAPPI testing standards. We also verify liner adhesion to ensure your box liners use migration-safe coatings.
Always compare your approved golden sample against the new batch. Flag any drop in flute stiffness immediately. If a corrugated lot feels soft, route it to a humidity testing chamber before mass production begins.
🛡️ Our Verdict: Last month, a supplier secretly swapped virgin kraft for a recycled mix. The boards looked identical. Our floor moisture meter flagged a 14% water retention spike. This hidden flaw would have collapsed a loaded pallet during sea freight.
Expert Insight: Reject any corrugated board exceeding a 12% moisture content upon arrival.
— Bruce Zhou, Packaging & Corrugated Board Expert

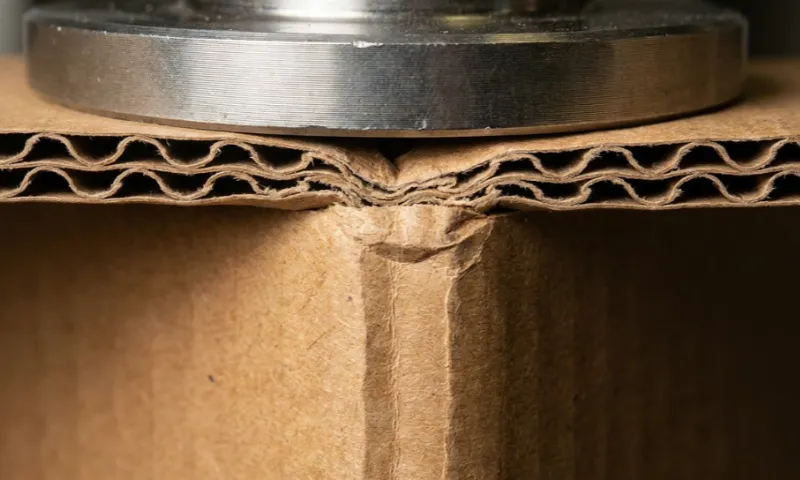

3. Run the Leeline 4-Point Stress Test
Beautiful design means nothing if your box crushes under a pallet. Real Packaging Quality Control treats boxes like engineered structures. I never approve a custom box manufacturer run without executing our Leeline 4-Point Stress Test to verify strength over supplier promises.
This procedure exposes hidden defects:
- Edge Crush: Measures stacking limits using TAPPI testing methods.
- Burst Strength: Reveals puncture risks.
- Vibration: Simulates rough transit.
- Dynamic Fit: Checks if inserts hold under load.
We apply this across corrugated mailers, folding cartons, and insert-heavy custom jewelry packaging. For rigid types of jewelry boxes or premium types of gift boxes, vibration testing stops contents from breaking outer walls.
🛡️ Our Verdict: During an ISTA transit test, a carton failed our 200 Hz vibration exposure. I thickened the board by 2mm. This added two production days but dropped damage to zero.
⚡ Power Move: Demand raw test numbers from suppliers instead of vague marketing claims.
4. Verify Artwork, Labels, Barcodes, and Regulated Compliance
A flawless box with a broken barcode is useless. In my experience with packaging quality control, bad data causes more expensive distributor rejections than crushed cardboard.
You must verify print registration and match color accuracy directly to your approved sample. Check your OCR-readable text, country-of-origin labels, and warning statements. We use an Axicon verifier on the factory floor to ensure barcode scanability hits an ANSI A grade based on GS1 standards.
For pharmaceutical and high-risk packaging, you cannot rely on random sampling. We enforce primary-pack controls, secure electronic records, and variable data serialization for complete traceability. A missing lot code is an immediate critical defect.
🛡️ Our Verdict: Last quarter, a factory’s inkjet printer drifted and blurred the mandatory warning statements. Because we ran a full variable data scan instead of a random visual check, we caught the OCR failure before shipping.
Expert Insight: Scan every barcode variant during first-article inspection. Never approve production based on visual checks alone.
— Ethan Zhu, Senior QC Inspector

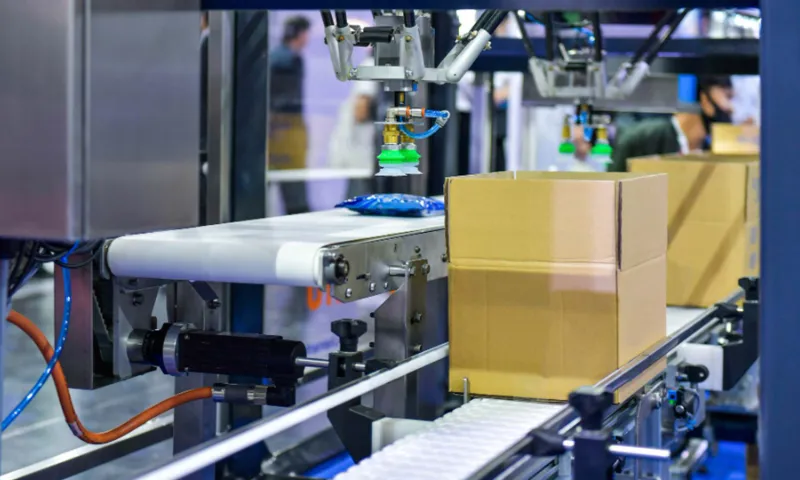

5. Place Automated Packaging Vision Systems at the QC Gates Humans Miss
Even the best inspectors get tired. On high-speed lines, I constantly see manual visual checks drift. Workers easily miss micro-defects, hidden seal faults, orientation errors, and blurred barcodes.
Automated packaging vision systems solve this limit. Our tests show they inspect every unit in real time. These setups fit perfectly on fast-moving FMCG, electronics, and pharmaceutical lines demanding strict FDA compliance.
Treat automation as a strict packaging quality control upgrade. Deploy cameras at critical control points. Pair them with automatic reject stations to pull bad units off the belt. Feed that defect data directly into your trend analysis. This bridges basic checks with full traceability and Industry 4.0 reporting.
🛡️ Our Verdict: During a recent pharma run, manual inspectors missed micro-leaks on blister packs moving at 300 units per minute. We installed a vision camera. It caught every fault and kicked the bad units off instantly.
⚡ Power Move: Install cameras immediately after sealing to stop defects early.
6. Prove Tertiary Packaging Can Survive Warehousing, Pallets, and Transit
Brands spend thousands on retail boxes, then toss them into cheap master cartons. This guarantees ruined inventory. You must test the total system. Our lab evaluates master carton strength, stacking loads, and pallet stability.
We also test vibration exposure and closure performance against ISTA and ASTM D4169 standards. If a shipper bows during a basic vibration test, your primary goods will crush.
Let these results dictate your sourcing. If a carton fails under pressure, increase the board grade or change the flute profile. To stop internal shifting, we often add rigid box liners or redesign the void fill. Sometimes, you simply need to reduce your pallet stack count. Always validate these structural specs before you buy custom shipping boxes.
🛡️ Our Verdict: Last quarter, a client’s bottom cartons collapsed under a 500-pound pallet load. We upgraded their standard C-flute to a double-wall BC-flute. This raised freight weight slightly but dropped warehouse crushing to 0%.
7. Run Root Cause Analysis on Packaging Defects
Catching a crushed corner saves one shipment. It does not stop the next failure. True packaging quality control requires prevention. We tie defects directly to the ISO 9001 corrective action process.
When we find delamination, barcode failures, or seal leaks, I trigger a Root Cause Analysis. First, isolate where the error entered the workflow. Check material batch records and factory storage conditions. Then, audit machine tooling settings, operator steps, and ISTA transit standards.
Finding the fault is only step one. Assign a Corrective and Preventive Action (CAPA). Verify this fix on the next lot. Update your spec sheets and use this data for future sourcing decisions.
🛡️ Our Verdict: Last quarter, a client’s pouch suffered recurring seal leaks. Floor Manager Peng noticed the heat-sealer dropped below 160°C during night shifts. We mandated hourly thermal checks, dropping defects to 0%.
⚡ Power Move: Require a formal CAPA report before you pay for any replacement production runs.

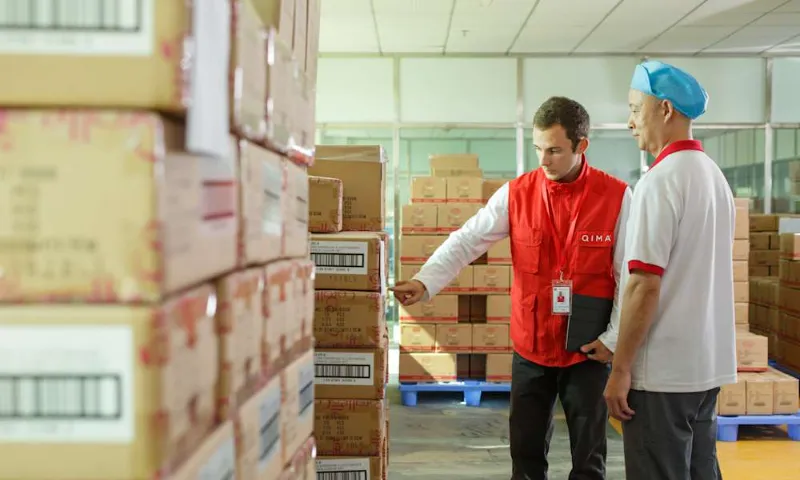

The 30-Day Packaging Quality Control Execution Plan
Step 1: Log Your Defect Data
Pull your customer damage logs from the past 90 days. Group your specific transit failures into structural breaks, water damage, and visual print errors. Look specifically for crushed corners or smeared ink. You will see exact patterns emerge. Calculate your exact financial loss before you speak to your supplier.
Step 2: Research Your Global Supply Chain
Research local manufacturing conditions if you source internationally. Regional humidity levels and extended transit times change your material needs. Read our guide on packaging manufacturers in South Africa. This explains how geographic climate directly affects corrugated board strength and glue adhesion.
Step 3: Deploy The New Standards
Send our testing requirements to your factory today. Demand raw lab test numbers before they start production. Do not accept basic visual checks alone. Walk away immediately if your current supplier refuses these testing terms.
Upgrade your structural designs to prevent future transit damage. Contact our engineering team to build a custom quality control protocol for your next launch.
Frequently Asked Questions About Packaging Quality Control
1. What AQL should I use for packaging defects?
I always set Critical defects at 0.0, Major at 1.0, and Minor at 2.5 AQL. In my experience, accepting higher limits guarantees mass transit damage. We recently audited a carton batch using a relaxed 4.0 AQL for major structural flaws.
The client lost thousands of dollars when the bottom boxes collapsed under pressure. You must lock these precise numbers into your initial purchase order. Never negotiate these structural limits on the factory floor.
2. When should I use 100% inspection instead of ISO 2859-1 sampling?
You must switch to full 100 percent inspection instantly if a random sample fails your strict AQL limit. We also mandate total inspections for premium rigid packaging and fragile glass containers.
Last year, our floor team caught a blurred logo on a randomly sampled luxury package. We stopped the machinery and inspected every single unit by hand. You must abandon random sampling immediately when you deal with high-value retail products or critical structural flaws.
3. How do sustainable materials change the QC plan?
Sustainable substrates absorb moisture much faster than virgin kraft paper. In our lab testing, recycled boards routinely fail standard burst strength limits under high warehouse humidity. You must add strict moisture meter checks to your incoming material protocol.
I always reject eco-friendly corrugated boards if their water retention spikes above 12 percent. A basic visual inspection looks fine, but it will never catch this invisible fiber breakdown before your pallet ships.
4. What extra controls matter for pharmaceutical packaging?
You cannot rely on human inspectors for regulated medical goods. You must install automated vision systems to scan every unit on the fast-moving belt. We verify variable data serialization and check OCR-readable text to guarantee an ANSI A grade based on GS1 standards.
We also mandate inline thermal checks for blister pack seals to prevent micro-leaks. Stop guessing at your compliance levels. Review our master checklist above, and contact our engineering team to build a flawless technical protocol for your next production run.
Disclaimer: I write these field reviews based strictly on my own hands-on factory testing. No packaging manufacturer pays me to promote these findings. My team buys all our own diagnostic lab equipment. We receive no kickbacks from any suppliers.
