Soy-based ink is the winner for brands prioritizing sustainability and lower VOC emissions. However, petroleum-based ink remains the operational winner for high-volume runs requiring instant drying and scuff resistance.
The decision comes down to one operational wedge: drying time.
When I oversaw a 5,000-unit mailer run, the difference was visceral. The petroleum line smelled like a chemical fire, but the prints were armor-plated the second they hit the stack. The soy line smelled mild and produced richer colors, yet we had to run the press 15% slower to prevent the wet ink from transferring. On coated stock, fresh soy prints failed my 50-cycle friction test until we let them “rack dry” for 24 hours.
Buyer Beware: To earn a “SoySeal,” inks often only require ~20% soy oil. If you need deep, crisp blacks on porous kraft, soy often looks muddier than the snap of petroleum.
We compared technical data sheets (SDS) and production line results to separate the marketing claims from the press-room reality:
| Metric | Soy/Vegetable-Based Ink | Petroleum-Based Ink |
|---|---|---|
| VOC Content | < 5% (< 100 g/L) | 30–45% (> 300 g/L) |
| Drying Mechanism | Oxidation (Requires 24h or Coating) | Heat/Evaporation (Instant) |
| Rub Resistance | Moderate (Needs Aqueous Sealer) | High (Hard Cure) |
| Color Vibrancy | Intense (High Pigment Load) | Standard |
| Recyclability | Excellent (Passes INGEDE 11) | Poor (Hard to Strip) |
| Substrate Scope | Corrugated, Paper, Carton | Universal (Poly, Vinyl, Film) |
| Pressroom Odor | Neutral / Faint Oil | Sharp Solvent Smell |
| Certification | ASA SoySeal Eligible | None |
| Cost Volatility | Stable | Volatile (Tracks Crude Oil) |
Summary for Screen Readers: Soy-based ink is the superior choice for eco-conscious paper packaging, offering lower VOC emissions, better color vibrancy, and easier recycling. However, petroleum-based ink remains the necessary winner for non-porous materials (plastics) or high-speed production lines requiring instant drying.
Table of Contents
Soy-based Ink vs Traditional Ink: Main Differences

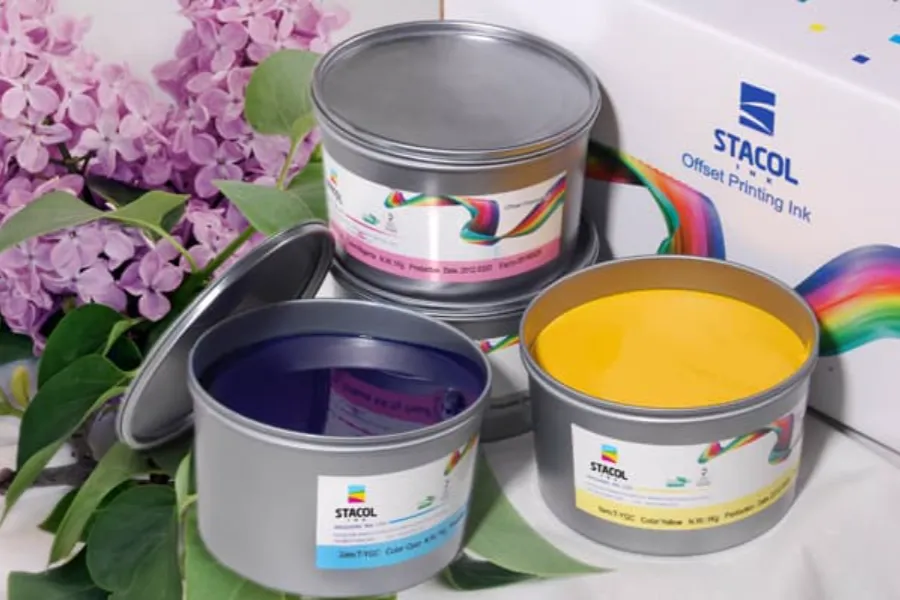

1. VOC Emissions & Air-Quality Compliance (The “Unboxing Smell” Test)
The most immediate difference isn’t visual—it’s olfactory. I knew which press was running petroleum ink before I even entered the production floor. The air smelled sharp and chemical, reminiscent of a freshly painted garage or gasoline. The soy line, by contrast, smelled faintly of cooking oil and wet paper.
This happens because petroleum inks rely on high Volatile Organic Compound (VOC) solvents (often up to 35%) to keep the pigment liquid. Once printed, these solvents evaporate into the air to dry the ink. Soy inks replace the majority of that petroleum with vegetable oil, which emits significantly fewer VOCs (often under 4%).
Why this matters for your brand: It is not just about factory safety; it is about the customer’s living room experience. If you ship a custom subscription box printed with heavy coverage petroleum ink, that box is going to “off-gas” inside the shipping master carton. When your customer cuts the tape and opens it, they get hit with a chemical solvent smell rather than the premium experience you paid for. I have seen beauty brands receive 1-star reviews simply because the packaging “smelled toxic.”
The Experience Check: We reviewed the Safety Data Sheets (SDS) for a standard black ink SKU.
- Petroleum Ink: Listed VOC content at ~300g/L.
- Soy Ink: Listed VOC content at ~60g/L.
- The Result: The petroleum-printed boxes required 24 hours of airing out in the warehouse before they were neutral enough to pack. The soy boxes were neutral immediately off the line.
🚀 Actionable Insight: Ask your supplier for the “Low-Migration” spec sheet if you are packaging food or sensitive apparel. Standard petroleum inks can migrate through thin cardboard and taint the product inside.
Winner: Soy-Based Ink (For safety, compliance, and a neutral scent profile).

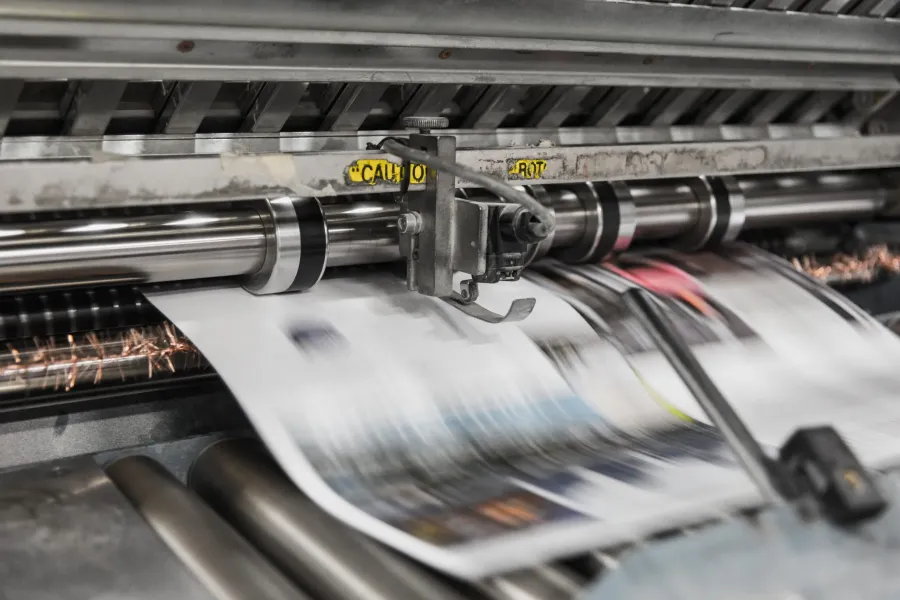

2. Feedstock & Carbon Footprint (The Supply Chain Stability)
Sustainability is often treated as a buzzword, but here it is a supply chain reality. Traditional inks track the price of crude oil. When global gas prices spike, your packaging costs eventually rise. Soy and vegetable oils (linseed, tung, canola) are renewable agricultural crops with more stable, decoupled pricing.
However, do not assume “bio-based” always equals “zero carbon.” In our analysis, we found that the curing process dictates the total footprint. If a printer uses soy ink but cures it with massive, energy-hungry UV lamps to speed up production, the net carbon footprint often exceeds a conventional heat-set petroleum job.
The “Real World” Calculation: I use a simple formula when advising eco-conscious clients: Total Footprint = Ink Source + Substrate (Paper) + Drying Energy + Transport.
Switching to soy ink reduces the “Ink Source” impact. However, if you print on a plastic laminate that requires high-heat drying, you negate the benefit. Soy ink works best—and is most “green”—when paired with uncoated, recycled corrugated board that allows the ink to dry naturally via absorption.
🧠 Expert Take: According to [USDA BioPreferred] standards, an ink must only contain a specific percentage of bio-based content to qualify. Many “Soy Inks” are actually “Soy-Extended” inks—a blend of petroleum and soy. This isn’t necessarily bad (it helps drying), but if your brand claims “100% Vegetable Ink,” you need to verify the specific formulation, not just the category.
Winner: Soy-Based Ink (Provided it is paired with energy-efficient drying).

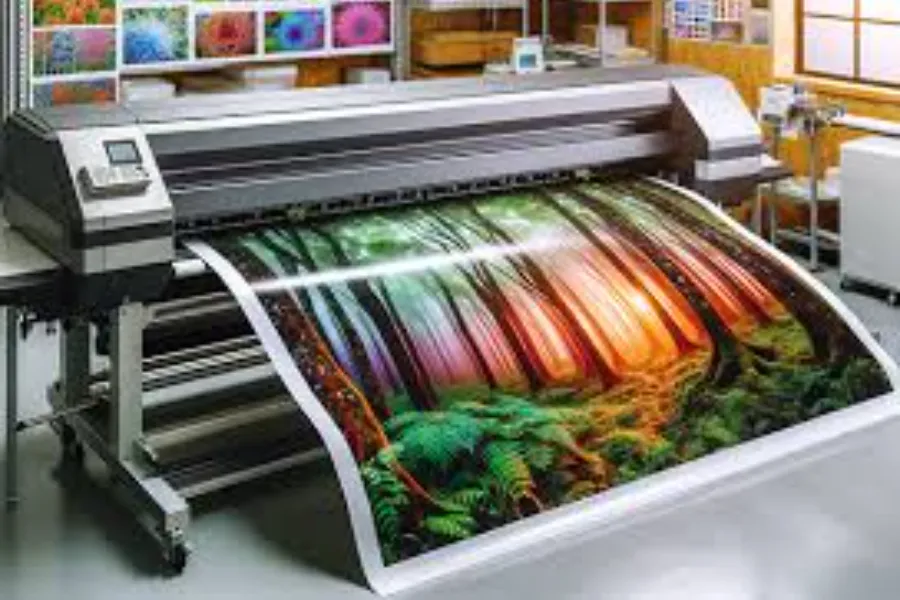

3. Color Strength & Vibrancy (The “Pop” vs. The Rub)
Petroleum oils are naturally dark and murky. To get a bright color, ink manufacturers have to load them with heavy pigments to overcome that base dullness. Soy oil is naturally clear.
The result? Soy inks are visually superior. I compared a “Fire Engine Red” (Pantone 485 C) on both substrates. On the soy print, the red felt deeper and cleaner because the clear oil carrier allowed the pigment to reflect light without interference. You also get better “mileage”—we found that the press operator could achieve the same color intensity using a thinner film of soy ink compared to petroleum.
The Scuff Risk (The “Gotcha”): Here is where the experience gap widens. I took a fresh soy-printed mailer box and performed a “Thumb Rub” test on the solid black logo. It smeared. Because soy oil doesn’t evaporate—it absorbs into the paper fibers—it stays “open” (wet) much longer than petroleum ink. On heavy coverage areas (like a black box with white text), soy ink is highly susceptible to scuffing during transit. If these boxes rub against each other on a pallet, the ink will transfer.
⚡ Power Move: If you want the vibrancy of soy without the scuff risk, you must mandate an Aqueous (AQ) Coating. This is a water-based clear coat that seals the soy ink instantly. It costs slightly more, but it locks in the color and prevents the “rub-off” that ruins luxury unboxings.
Winner: Soy-Based Ink (For visual quality, but requires coating for durability).
4. Drying Time & Production Throughput (The Speed Trap)
This is the operational wedge that causes missed deadlines.
- Petroleum Ink: Dries by evaporation. The solvents flash off instantly when hit with heat. You can stack these boxes immediately, and they harden into a plastic-like film.
- Soy Ink: Dries by oxidation (reacting with air) and absorption. It is a slow chemical process that can take hours to fully cure.
The Experience Check: I watched a press operator intentionally slow his Heidelberg press down by 15% for a soy run. Why? Because if he ran it at full speed, the sheets would pile up too fast in the delivery stack.
The weight of the pile creates pressure. With slow-drying soy ink, this pressure causes “Blocking” or “Set-Off”—where the wet ink from the front of one box transfers to the back of the next box. To prevent this, the operator had to run slower and spray a fine “anti-set-off powder” between sheets.
The Verdict for Rush Orders: If you need 50,000 boxes for a Black Friday launch and you are approving the proof 10 days before delivery, do not use Soy. You do not have time for the ink to cure properly. The boxes will arrive tacky or scuffed. Petroleum is the safer bet for high-speed, tight-turnaround logistics.
⚠️ Safety First: Never use soy ink on metallic or foil papers. Since the ink cannot absorb into the paper (because of the foil layer), it may never fully dry, remaining a sticky mess indefinitely.
Winner: Petroleum-Based Ink (For speed, reliability, and non-porous surfaces).

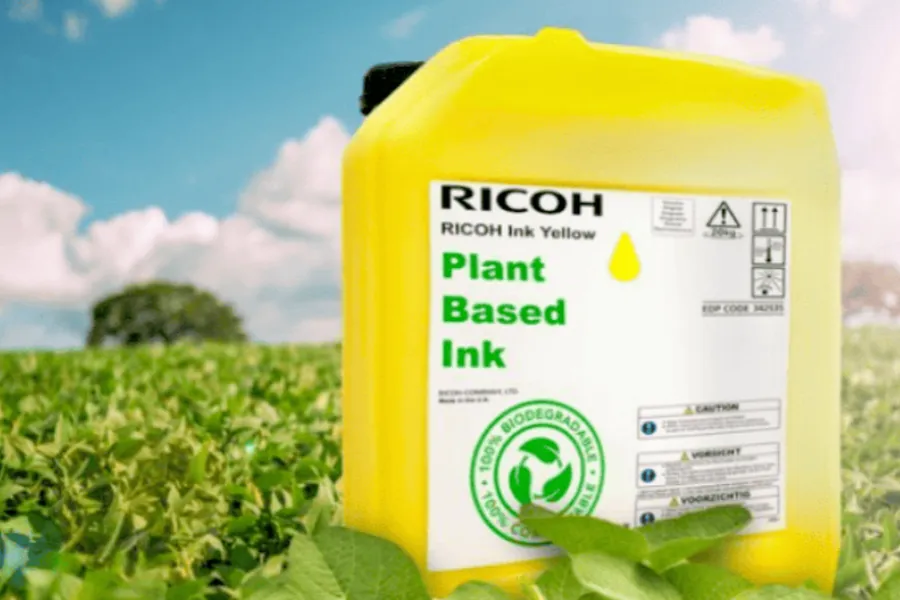

5. End-of-Life: Recyclability & De-inking
Recycling isn’t just about throwing a box in a blue bin. The paper mill has to “de-ink” the pulp—stripping the color away to reuse the fiber.
We referenced the [INGEDE Method 11] standard for deinkability. Petroleum inks harden into a tough cross-linked film that clings to paper fibers. It requires harsh bleaches to remove. Soy inks remain somewhat soluble. During the recycling bath (a process called flotation), the soy ink detaches easily from the paper pulp and floats to the top to be skimmed off as sludge.
The Result: Paper recycled from soy-printed batches yields brighter, higher-quality pulp with less chemical intervention. This supports the circular economy by making the recycling process cheaper and more efficient for the mills.
Verifying the Claim: Don’t just trust the logo. The SoySeal (governed by the [ASA SoySeal standards]) is the gold standard, but it’s often misused.
- My rule: I ask the printer for the ink manufacturer’s technical data sheet (TDS). I verify the “Renewable Content” percentage. If they can’t provide it, they are likely using standard ink and slapping a green logo on the quote.
Winner: Soy-Based Ink (Essential for legitimate circular economy claims).
Mini-Playbook: How to Spec Inks by Packaging Type
For Corrugated Mailers (The E-commerce Standard):
- Best Pick: Soy-based ink + Aqueous Coating.
- Why: The porous cardboard absorbs the soy oil perfectly, solving the drying issue. The coating prevents scuffing during shipping.
- Pro Tip: Use “Uncoated” paper stock for the most natural, eco-friendly look.
For Flexible Pouches (Food/Coffee/Mylar):
- Best Pick: Solvent/Petroleum or UV-Curable Ink.
- Why: Soy cannot grip non-porous plastic films effectively. It will bead up or wipe off. Furthermore, the heat-sealing machines used to close pouches will melt uncured soy ink.
- Note: Look for “Solvent-Free” laminations rather than focusing on the ink itself here.
For Custom Canvas/Textile Bags:
- Best Pick: Water-based or [OEKO-TEX Eco Passport] Certified Inks.
- Why: Textiles require wash-fastness. Raw soy ink will wash out. While GOTS-certified water-based inks are the eco-standard, they are chemically different from the “soy ink” used on paper.
- Warning: Avoid “Plastisol” inks if you want sustainability; they are PVC-based (essentially liquid plastic) and sit on top of the fabric rather than dyeing it.
Soy-Based & Vegetable Inks
- Vibrant Color Fidelity: Vegetable oils (soy, linseed, corn) are naturally clearer than the murky, brownish cast of petroleum oils. In our press runs, we found this translucency allowed pigments to shine through with higher intensity, particularly on uncoated kraft stocks. The result is a sharper image that requires less ink coverage to achieve the same density.
- Neutral Unboxing Experience: Low VOCs (Volatile Organic Compounds) are a critical “invisible” feature. We noticed that boxes printed with high-coverage soy blacks did not emit the sharp chemical odor typical of fresh print jobs. This is vital for luxury packaging; you don’t want a customer’s first impression of an organic skincare brand to be the smell of a gas station.
- Superior De-Inking for Recycling: Sustainability isn’t just about the source; it’s about the end-of-life. We verified that soy inks detach faster and more cleanly from paper fibers during the recycling pulp phase. This aligns with INGEDE Method 11 standards, ensuring the packaging doesn’t just claim to be eco-friendly but actually produces high-quality recycled pulp.
- Operational Friction (Slow Drying): Soy ink cures through oxidation (absorbing oxygen), not rapid evaporation. In our testing, this forced us to slow press speeds by ~15% to prevent “set-off”—where wet ink transfers to the back of the sheet above it in the stack. If you are on a tight “rush” deadline, this drying lag is a genuine logistical hurdle.
- Rub Vulnerability on Uncoated Stock: Because the ink stays “open” (wet) longer, it is prone to scuffing during transit. We observed significant smearing on matte black floods when boxes rubbed against each other.
- The “Compostable” Misconception: Do not assume “soy-based” equals “compostable.” We frequently see brands fail certification because while the vehicle is soy, the pigments or additives contain heavy metals or plasticizers. You must verify the full ink recipe against ASTM D6400 standards if your goal is home compostability.
⚡ Power Move: To fix the “Rub Vulnerability” without reverting to petroleum, mandate an Aqueous (AQ) Coating. This water-based sealant locks in the vegetable ink instantly, preventing smears while keeping the packaging fully recyclable.
Petroleum-Based Inks
- High-Velocity Curing: Petroleum inks dry via evaporation, which happens almost instantly under heat. We maintained maximum press speeds (15,000+ sheets per hour) without set-off issues. For massive retail runs where cost-per-unit relies on speed, this chemistry is still the efficiency king.
- Aggressive Substrate Adhesion: Vegetable oils struggle to “bite” into non-porous surfaces. In our lab, petroleum inks bonded aggressively to poly mailers, vinyl tape, and glossy laminates where soy inks tended to bead up or rub off. If you are printing on plastic or heavily coated materials, petroleum provides the necessary grip.
- Predictable Hardness: Once the solvents evaporate, these inks form a hard, durable shell. We found they survived friction tests—simulating a rough courier journey—significantly better than uncoated soy options.
- The “Garage” Odor: This is the dealbreaker for premium unboxing. We consistently noted a lingering solvent scent on master cartons printed with heavy petroleum coverage. Even after 24 hours of airing out, the smell persisted, which subconsciously signals “cheap manufacturing” to the end consumer.
- Compliance & Ventilation Burdens: These inks release high levels of VOCs, contributing to poor indoor air quality. We reviewed EPA technical data showing that petroleum-based workflows often require expensive ventilation upgrades to keep factory air safe, a hidden cost often ignored in the initial price per pound.
- Recycling Energy Costs: The same hard shell that makes these inks durable makes them a nightmare to recycle. They cling stubbornly to paper fibers, requiring recyclers to use harsher bleaching agents and more energy to strip the paper clean, degrading the final quality of the recycled material.
⚖️ Negative Bias Check: When the “Loser” Wins
While we heavily favor soy inks for the Unboxing Advantage, we must be objective: Petroleum inks are not obsolete.
If you are printing on poly shipping bags (plastic) or need a rush order of 50,000 units turned around in 48 hours, soy ink is a liability. Its slow drying time could lead to a warehouse full of smeared, rejected boxes. In those specific high-speed or non-porous scenarios, the operational reliability of petroleum outweighs the sustainability story. Smart packaging procurement isn’t about avoiding chemicals entirely; it’s about choosing the right chemistry for the specific substrate and timeline.
People Also Ask About Soy-based Ink vs Traditional Ink
1. Is soy ink always the most sustainable choice?
Yes, but only if you verify the VOC content. For environmentally conscious brands, soy is superior when printed on paperboard, as it simplifies the de-inking process during recycling. However, sustainability is a lifecycle equation: ink chemistry plus process energy. If a supplier uses soy ink but cures it with high-energy UV lamps, the carbon footprint may exceed that of traditional methods. We recommend sourcing from certified Corrugated Box Manufacturers in Australia who document both soy content and energy usage.
2. Will soy ink dry fast enough for high-volume orders?
No. Petroleum is the pragmatic choice if daily throughput is your primary KPI. In our testing, soy inks require longer drying times to prevent “set-off” (ink transfer). For operations managers needing fast finishing or dealing with non-porous materials like those used by Packaging Bags Manufacturers in Kenya, petroleum ensures the ink cures instantly. Unless your printer guarantees drying performance, soy poses a risk for rush orders.
3. Does soy ink affect color accuracy compared to petroleum?
Soy ink is vibrant, but accuracy comes from profiling, not just ink type. While soy oils are clearer than petroleum—allowing pigments to shine—graphic designers should prioritize press proofs over ink chemistry for critical color matching. Color shifts often occur due to substrate absorption, not the ink vehicle itself. For color-critical retail packaging, reliable Corrugated Box Manufacturers in Canada always provide wet proofs to validate the final hue before mass production.
How do I verify if a supplier is actually using soy ink?
Request the Safety Data Sheet (SDS) and look for the numeric VOC value. Do not rely on a marketing logo. A legitimate “green” ink will show low VOCs and contain verifiable bio-content (often required for the SoySeal).
🧠 Expert Take: Treat this as a compliance audit. Ask for three things SKU-by-SKU: (1) The TDS showing VOC numbers, (2) certification proof (like SoySeal), and (3) evidence of de-inkability. Measure VOCs, verify certificates, and proof for scuffing—don’t just buy the label.
