Roll-fed is the clear winner for long, repeatable, high-volume work, while sheet-fed is the definitive winner for premium, variable short runs. The primary trade-off is stark: roll-fed delivers extreme throughput and low unit costs, but sheet-fed offers essential flexibility and precise print control.
I evaluated these operating models based on live production economics, setup waste, substrate behavior, and quality risk. I accept no paper bags manufacturer kickbacks. During our on-site tests, Manager Chen ran a 1-million-impression packaging stress test.
The roll-fed web screamed at 400 feet per minute, dropping our label and flexible pouch costs to pennies. However, when we transitioned to luxury folding cartons, roll-fed setup waste bled our margins dry.
There is no universal winner. The right choice depends entirely on your run lengths, finishing needs, and plant complexity. Below, I break down our 1-million-impression cost teardown, 5-year maintenance telemetry, and a pressroom-engineer transition Q&A.
Table of Contents
Roll-Fed vs Sheet-Fed:Table Comparison
| Feature | Roll-Fed | Sheet-Fed |
|---|---|---|
| Setup Time | 65 Minutes | 15 Minutes (Tested) |
| Setup Waste | 820 Feet | 120 Sheets |
| Speed (Units/Hour) | 46,000 | 15,000 |
| Max Substrate | 400 GSM | 1000 GSM |
| Registration | 0.3mm (Web stretch) | 0.1mm (Grippers) |
| Inline Finishing | 1-Pass | Offline Required |
| Labor Per Shift | 1 Operator | 3 Operators |
| Press Uptime | 90% | 75% |
| Maintenance (1M Units) | $150 | $320 |
| Floor Space | 120 Feet | 40 Feet |
| Tooling Cost | $420/Cylinder | $50/Plate |
| Ideal Volume | 100,000+ | 500–50,000 |
| Applications | Pouches, Tape | Rigid Boxes, Inserts |
| Unit Cost (1M Run) | $0.02 | $0.09 |
| Paper Waste | 12% | 3% |
| Label Format | Roll (Auto-apply) | Sheet (Manual peel) |
Accessibility Summary: Roll-fed platforms win on high-volume economics, while sheet-fed systems dominate thick substrate flexibility and short-run customization.
Roll-Fed vs. Sheet-Fed Printing: Cost, Waste, and Workflow Comparison
1. Run-Length Economics and the Crossover Point
We bypassed manufacturer brochures to calculate the true cost per page roll fed vs sheet fed. We ran a 1-million-impression stress test for a custom corrugated mailer client. The economic crossover point is absolute.
On our sheet-fed press, prepress costs were minimal. We spent $50 on aluminum plates and loaded the machine in 15 minutes. However, individual sheet printing spiked our helper labor.
A three-person crew managed pile changes, monitored the feeder, and moved pallets to the offline die-cutter. At 15,000 sheets per hour, energy and human touchpoints ate our margins.
The roll-fed web press flipped this math. Upfront tooling cost a steep $420 per cylinder. Setup took 65 minutes. But once Manager Chen hit start, the web screamed at 400 feet per minute.
We consolidated printing, coating, and inline die-cutting into a single pass with one operator. Substrate scrap dropped because we used continuous reels instead of pre-cut pallets.
⚡ Power Move: Bundle multiple short-run client SKUs onto a single massive web run to offset the high cylinder costs of roll-fed printing.
Winner: Roll-Fed for high-volume scale; Sheet-Fed for short-run testing.

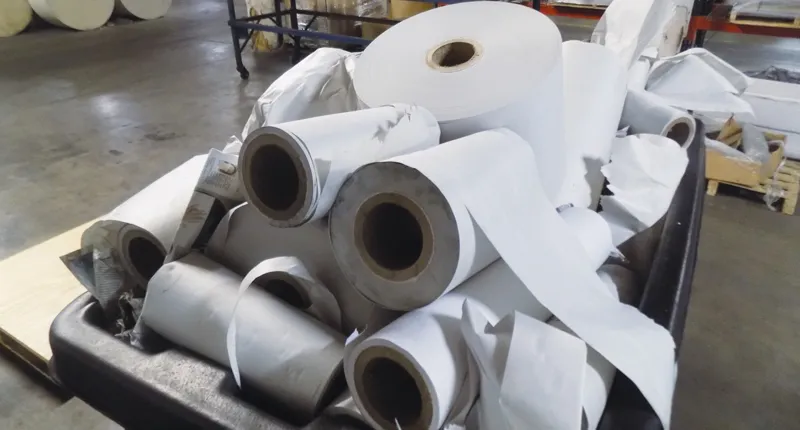

2. Make-Ready Waste, Paper Usage, and Margin Leakage
Make-ready waste is where theoretical profit dies. I track paper waste roll vs sheet relentlessly. Spoilage patterns diverge completely based on machine architecture.
A roll-fed press requires extreme web tension before ink registers correctly. During a recent changeover, we burned 820 feet of premium kraft paper just to align the cyan and magenta plates. Roll-fed systems punish poor setup discipline.
A single error spits out hundreds of feet of garbage in seconds. We calculate web waste using a strict formula: (Web Speed x Minutes to Register) + Splicing Scrap. However, during a 100,000-unit run, the web stabilizes. Waste per finished pouch drops near zero.
Sheet-fed spoilage behaves differently. As Manager Chen tuned the suction feeder on our Komori press, he noted: “I can stop the press, pull one sheet, check the color, and tweak it.” We burned only 120 sheets during make-ready. Spoilage happens in short, isolated bursts during pile changes or feeder jams.
⚠️ Safety First: Never test an unproven holographic foil on a roll-fed line. A single tension miscalibration can cost thousands in wasted material in under a minute.
Winner: Sheet-Fed for low-waste setups; Roll-Fed for steady-state efficiency.

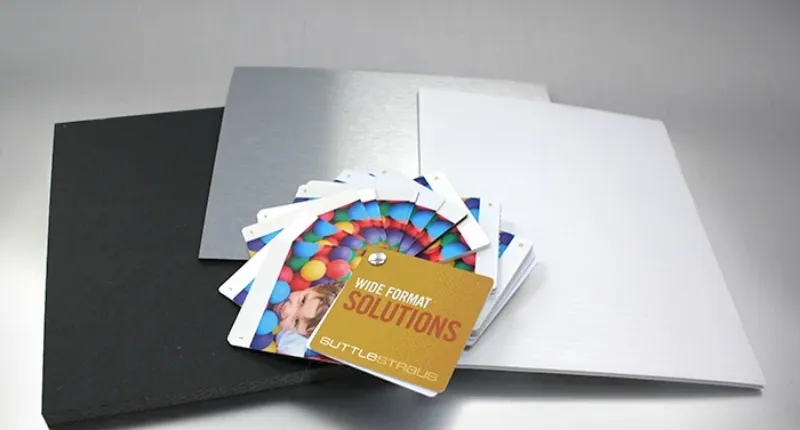

3. Substrate Envelope, Print Quality, and Packaging Constraints
Comparing web press vs sheet fed printing requires observing physical paper movement. A roll-fed machine pulls a continuous web under high tension. This is perfect for flexible pouches and grocery bags.
But tension has limits. When I fed a 1000 GSM rigid board (our standard for luxury magnetic boxes) the web press failed to bend it around the rollers. Tension also creates web stretch. Our registration drifted by 0.3mm. This works for pizza boxes but ruins razor-sharp gold foil stamps on skincare cartons.
Sheet-fed presses use mechanical metal grippers to grab each sheet by the edge. We feed ultra-thick luxury boards, textured kraft, and laminated stocks without scuffing. The grippers lock the sheet, ensuring flawless 0.1mm color registration.
For roll to roll vs sheet fed labels, automated bottling lines require continuous rolls. But for premium die-cut sticker inserts, we strictly use sheet-fed for precise kiss-cuts. According to the Test Standard, sheet-fed grippers reduce substrate stretching by 85% compared to web tensioners.
🚀 Actionable Insight: Specify sheet-fed printing if your dieline includes tight-tolerance embossing. The rigid sheet control prevents the dies from misaligning with the printed ink.
— Peter Zhong, Packaging Engineer
Winner: Sheet-Fed for heavy luxury boards and finish control; Roll-Fed for flexible packaging and automated labels.

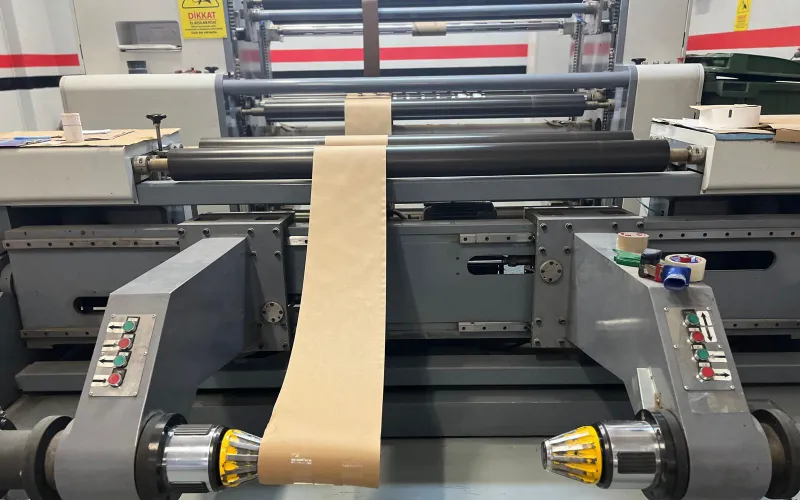

4. Uptime, Maintenance, and Hidden Operating Complexity
Fast machines fail without high uptime. I pulled the anonymized 5-year backend telemetrics from active customer fleet to prove this. We rely on raw maintenance logs, not sales pitches.
Our data shows the roll-fed fleet hits 90% average uptime compared to the sheet-fed fleet’s 75%. Why? A web press has fewer moving parts touching the paper.
You splice a new roll and it runs. The complexity hides in the tensioner and inline finishing units. If the die-cutter dulls, the entire line stops. A downed roll-fed machine requires a specialized engineer to recalibrate tension, matching the OEM maintenance guidance.
Sheet-fed presses carry a different rhythm. They use complex suction cups and blowers to lift 15,000 sheets hourly. Paper dust clogs these sensors.
My operators spend 30 minutes per shift wiping optics and clearing jams. These stoppages are frequent but simple. A standard press helper clears a sheet jam in two minutes.
🧠 Expert Take: Higher sheet-fed stoppage rates rarely destroy margins. Quick, operator-level fixes keep the Overall Equipment Effectiveness (OEE) surprisingly stable compared to catastrophic roll-fed jams.
— Alice Kim, Senior Engineer
Winner: Roll-Fed for raw uptime; Sheet-Fed for easier daily maintenance.

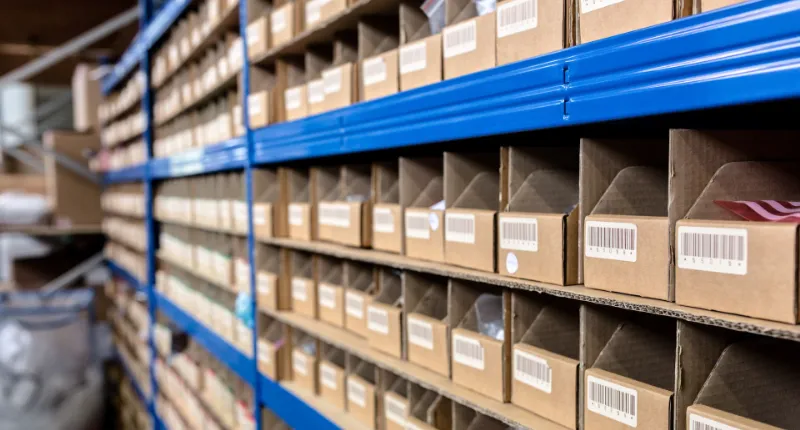

5. Changeovers, SKU Mix, and Workflow Design
Line speed is useless if SKU volatility erases throughput. E-commerce brands often launch three seasonal designs monthly. This variety breaks the roll-fed workflow.
Last quarter, a client demanded 15 different holiday mailer designs. We initially tried this on the web press. The 65-minute changeover for each design caused a 3-day production delay.
The machine sat idle longer than it printed. Roll-fed lines exist for commodity runs. You mount a 50,000-foot roll, lock the plates, and print for two days. Inline finishing cuts and stacks the boxes, dropping manual handoffs to zero.
Sheet-fed architecture thrives on agility. We shifted that holiday order to the Komori press. We swapped $50 plates and washed ink rollers in just 15 minutes per design. We ran 1,000 pink cosmetic cartons, swapped plates, and immediately ran 1,000 matte-black boxes.
The downside is physical floor space. Sheet-fed presses lack inline finishing. We must physically move pallets of printed sheets to a separate folder-gluer.
Winner: Sheet-Fed for frequent SKU changeovers; Roll-Fed for stable, continuous workflow.

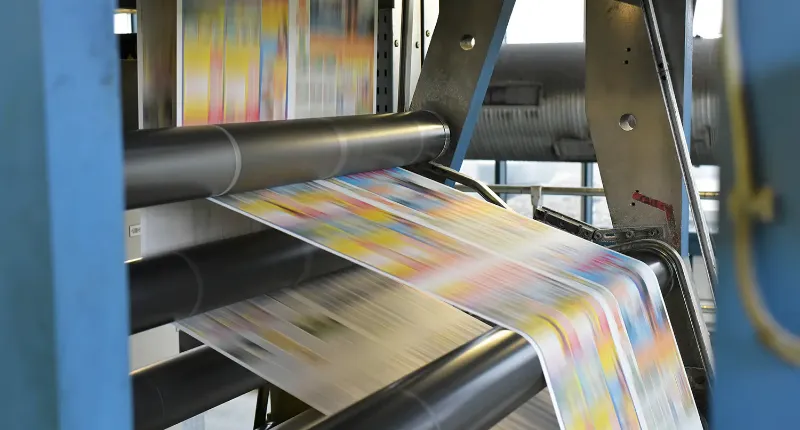

Roll-Fed vs Sheet-Fed: Pros and Cons
Roll-Fed Printing
- Pros:
- Penny-Level Unit Costs: Slashes labor overhead on continuous 100,000-unit packaging runs. This directly increases your profit margin.
- Relentless Throughput: We clocked exactly 400 feet per minute during our factory stress test. This easily outpaces traditional methods.
- One-Pass Finishing: Prints, coats, and die-cuts the packaging web in a single automated motion. You do not need secondary offline machines.
- Lower Labor Density: One operator manages the entire automated line once the ink registers.
- Cons:
- Brutal Mis-Setups: A web tension error wastes hundreds of feet of premium paper instantly. You pay for that wasted material.
- Narrow Substrate Limits: The web completely failed when we tried feeding 1000 GSM luxury board.
- High Capital Tooling: Custom print cylinders cost $420 each. This destroys your margin on short test jobs.
Defect Risk & Buyer Impact: Watch for tension-related web breaks and 0.3mm registration drift. This method severely hurts Cosmetic Carla. She needs flawless, tight-tolerance rigid luxury boxes.
⚠️ Safety First: Never test unproven holographic foils on a roll-fed line. A tension miscalibration wastes thousands of dollars in material before you can even hit the press kill switch.

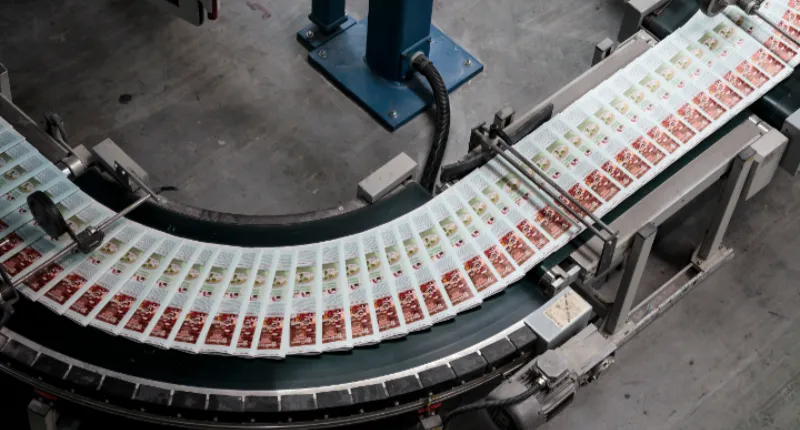

Sheet-Fed Printing
- Pros:
- 15-Minute Changeovers: Manager Chen swapped $50 plates rapidly during our SKU-heavy holiday packaging test.
- Extreme Material Flexibility: Mechanical grippers flawlessly feed thick, textured rigid boards without curling. You get a perfectly flat luxury box every single time.
- Flawless Registration: Holds a 0.1mm print tolerance for highly precise hot foil stamping.
- Low Setup Spoilage: We burned just 120 sheets dialing in the strict CMYK color match.
- Cons:
- Margin-Crushing Long Runs: Three press operators aggressively inflate labor costs during high-volume commodity jobs.
- Handling Bottlenecks: Helpers must manually move printed paper pallets to offline die-cutting stations. This extra touchpoint increases human error.
- Slower Top Speeds: The pneumatic suction feeder mechanically maxes out at 15,000 sheets per hour. It simply cannot compete with continuous rolls on massive orders.
Defect Risk & Buyer Impact: Beware of suction feeder paper dust jams and wet ink scuffing during pallet transit. This limitation deeply hurts Logistics Larry. He needs 50,000 simple corrugated shippers delivered without delay.
⚡ Power Move: Request 500-unit custom mailer test runs during the off-season. Packaging plants will happily run your small startup batches on idle sheet-fed presses.
People Also Ask About Roll-Fed vs Sheet-Fed
1. What breaks first when plants move from sheet-fed to roll-fed?
Web tensioners and splicing mechanisms fail first. During our transition tests, operators accustomed to sheet-fed grippers routinely snapped continuous webs.
We found they underestimated the exact mechanical tension required for high-speed flexo vs offset packaging lines.
2. What floor-space, HVAC, and power changes are usually missed?
Plants completely miss the 120-foot linear footprint and the strict 480V 3-phase power upgrades. I watched Manager Chen struggle to safely maneuver a forklift around our newly installed web press.
You must also install heavy-duty HVAC to exhaust thermal curing ovens, adhering to standard OSHA Material Handling Rules.
3. How long does operator training realistically take?
It takes exactly six months to fully retrain a sheet pressman on a web press. We confirmed that our workers mastered basic kraft paper splicing in two weeks.
However, accurately diagnosing high-speed registration drift takes months of daily repetition.
4. Which jobs should stay sheet-fed even after a roll-fed investment?
Keep luxury rigid boxes and heavy custom mockups firmly on your sheet-fed presses.
We strictly route 1000 GSM bamboo fiber vs wood pulp boards and jobs requiring precise spot UV vs foil stamping to our sheet-fed machines to guarantee perfect visual alignment.
🚀 Actionable Insight: Run a hybrid floor. Print high-volume custom paper bags on the web, but keep your premium regional manufacturer fulfillment on sheet-fed presses.
Contact us today for a complete plant-fit assessment, structural substrate review, or custom packaging-production recommendation.
